Cast iron Steel Vertical seat UCP314 Zinc Alloy Pillow Block Bearing
NSK pillow block bearing, Description,
1. The outer spherical bearing with a seat is composed of an outer spherical bearing and an outer spherical bearing seat. When it is used, it is not necessary to design a bearing box separately, so the size is small and the structure is simple. It can be directly mounted on the design part of the host with bolts, which is convenient to use.
2. The inner hole of the outer spherical bearing with a seat adopts tolerances and cooperates with the shaft stroke clearance (except for the adapter sleeve). The bearing is fixed on the shaft through the top wire on the inner ring, eccentric sleeve or adapter sleeve. It is easy to install or disassemble, and it also reduces the machining accuracy requirements on the shaft. It is more convenient to replace the bearing when the main engine is repaired.
3. Outer spherical bearing housing includes vertical seat P, square seat F, boss square seat FS, boss round seat FC, diamond seat FL, ring seat C, slider seat T.
Pillow block bearing insert, Specification,
| Bearing Model | UCP314 |
| Bearing type | Pillow block bearing |
| Size(mm) | 360*90*187 |
| Material | Chrome steel |
| Weight(kg) | 12.00 |
| Brand | MCBB/ Per customer's requirement |
| Packing | Plastic bag+single box+outer carton+wooden pallet |
| Lead time | 3-15 days according to the quantity |
| Payment terms | T/T, L/C, Western Union, Paypal, Direct RMB, Payment by oneline credit card |
| Gurantee | 36months |
Flange mounted pillow block bearings, Feature,
1. Cast iron seat: rigid overall structure, easy to install.
2. Efficient operation: high radial load capacity, used in heavy industry
3. Military quality: reduce noise and vibration, improve wear resistance.
4. Adjustable spherical surface: When the shaft has unavoidable deformation, or it is difficult to ensure coaxiality during installation, it can automatically adjust and compensate.
Why choose mcbb bearing?
With us your money in safe, your business in safe. Offering 7days refund.
More bearing model for reference,
| Bearing Unit | d | h | a | e | b | s1 | s2 | g | w | B | n | screw | kg | Ball unit | Block unit |
| UCP313 | 65 | 90 | 340 | 260 | 90 | 25 | 38 | 33 | 176 | 75 | 30 | M20 | 10 | UC313 | P313 |
| UCP314 | 70 | 95 | 360 | 280 | 90 | 25 | 40 | 35 | 187 | 78 | 33 | M22 | 12 | UC314 | P314 |
| UCP315 | 75 | 100 | 380 | 290 | 100 | 27 | 40 | 35 | 198 | 82 | 32 | M22 | 14 | UC315 | P315 |
| UCP316 | 80 | 106 | 400 | 300 | 110 | 27 | 400 | 40 | 210 | 86 | 34 | M22 | 18 | UC316 | P316 |

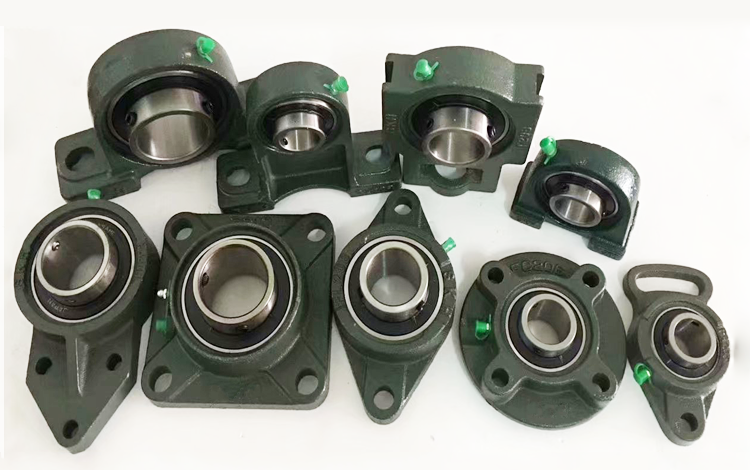

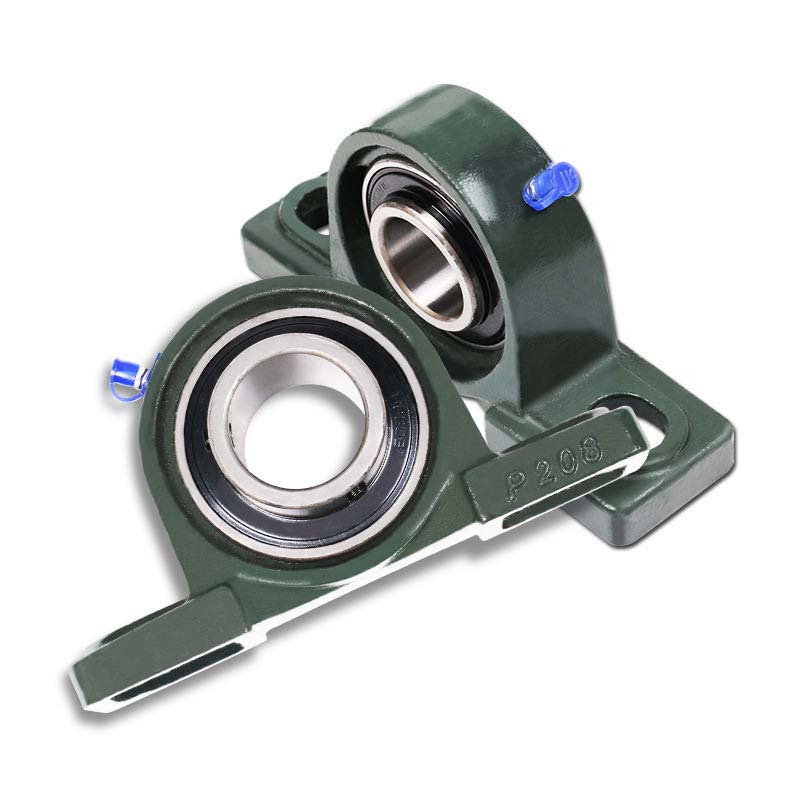

Product pictures show,
Application,
UCP314 ball bearing with housing, these bearings can be used for: plastic wire drawing machine, tire excavator, magnetic pump, annealing furnace, special machine tool, electric iron, conveyor, mixer, balance machine, plastic color mixer, drill, corrosion resistant pump, chemical fiber machinery, inserts, welding table, monitoring equipment, coal mill, air dryer, and so on.
Welcome contact us for price list of bearings, if you need. Here 24/7 in serve.
